DL-410K

Description

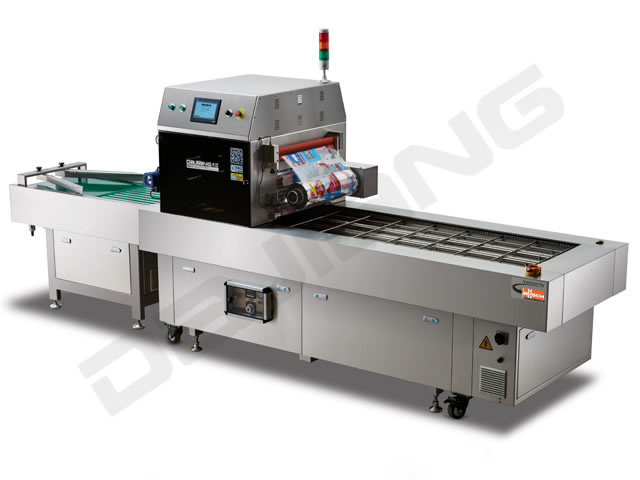

DL-410KA automatic map tray sealing machine (vacuum seal machine) is a special type of tray food sealer.
The basic principle of the packing is isolating the food from the ambient air with high barrier materials (plastic pallet and sealing film), and filling gas mixture into the pallet to maintain the original flavor and appearance of the food for a long time, then suppress growing of bacteria and microbe to the fullest extent possible.

Application of Automatic Map Tray Sealing Machine

DL-410KA vacuum seal machine can be used for fresh-keeping packing of different types of fresh and cooked food.
The type and mixing proportion of fresh keeping gas are different for different types according to the food’s characteristics. So the tray food sealer needs to adapt to adjusting different gases and gas proportion.

Technical Characters of Automatic Map Tray Sealing Machine

1.Control System: OMRON PLC programmable control system.
The data setting and motion control are more accurate and the performance is more reliable, so the operation is easier.

2. Pneumatic System: SMC pneumatic elements.
The quality of the vacuum seal machine is stable and reliable and the service life is long. Equipment failures, suspension of work and even other quality accident caused by component quality can be avoided

3. Electric System: France Schneider Electric Elements is equipped with long service life and high applicability to assure reliable quality.

4. Vacuum System: Germany BUSCH vacuum pump (high oxygen vacuum pump) is equipped with high vacuum degree and long service life to assure reliable quality.

5. Structure Material: Regarding to the main structure material, vacuum seal machine adopts 304 Stainless Steel, which is safe and easy to clean.
6. The Germany WITT gas mixer is adopted for real-time gas mixing, which accuracy is higher than ± 1%. The quality of food packing of each box is guaranteed to be always consistent. The preservation period of the packed food are controlled effectively.

7. Gas detection method: precise gas detection means.
Germany WITT gas analyzer is used for testing the gas within the food packing period to ensure vacuum seal machine reaching the specified precision.

8. Easily replaceable of sealing mould: Different size of the trays is available according to different requirement.

9. Emergency stop switch:
Vacuum seal machine is equipped with an emergency stop switch which can be pressed in case of abnormal condition to terminate all ongoing work programs and guarantee the safety of equipment and personnel.

10. Work status indication:
DL-410KA automatic map tray sealing machine uses an operating program status and failure real-time display function to monitor the equipment to ensure the normal operation.
11. Packing executive system:
The totally enclosed packing executive system is isolated from the operator to completely eliminate the potential hazard in the packing process.

12. Heavy duty casters: Universal caster wheels with brake function are mounted at the bottom of the automatic map tray sealing machine for users to move and fix the vacuum seal machine

13. Automatic conveying system: special stainless steel conveying system is adopted. It’s safe, healthy, reliable and more convenient to clean.
14. DL-410KA vacuum seal machine features high degree of automation, reliable quality, long service life, high yield and wide applicability.
15. According to different fresh-keeping gases required by the food, mixing ratio is classified into three fresh-keeping gases, two fresh-keeping gases and one fresh-keeping gas to meet the different needs of the users.

Technology Specification

Model DL-410K Automatic Map Tray Sealing Machine
Packaging Tray Dimensions (mm) 540 × 280 × 80 (×2)
Max Width of Film(mm) 600
Max Diameter Of Film(mm) 260
Packaging Speed(time/m) 4
Electrical Requirement 3P/380V/50HZ
Working Pressure (MPA) 0.6 to 0.8
Consume Power(kW) 7.5
Pump 100
Air Exchanging Rate (%) ≥99
Air Filling Concise (%) ≥1
Machine Weight(Kg) 800
Machine Size(mm) 2800 × 1020 × 1520

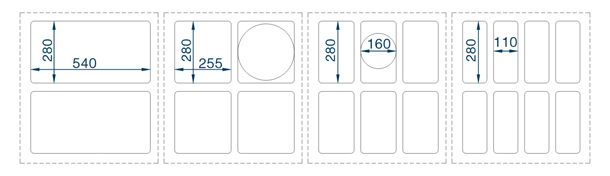

Proper Dimensions Trays for DL-410K
