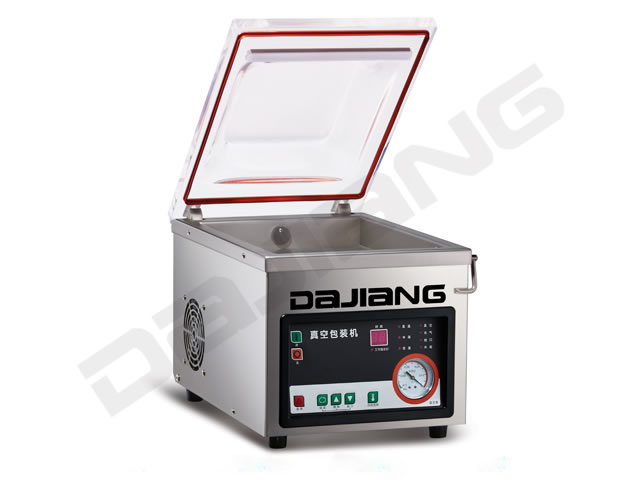

DZ-260-O

Description OF Vacuum Sealing Machine

Vacuum sealer uses microcomputer control system which is used for setting precise and stable parameter of packaging.

Application

DZ-260/O table top vacuum sealing machine (vacuum sealer) is widely applied in vacuum packaging of various food, medicine, electrical product and chemical product.

Technical Characters of Vacuum Sealer

1. Microcomputer control system is used for setting precise and stable sealing time according to different packing materials and packing requirements, which is easy to operate.
2. Equipped with high efficiency vacuum pump, lower noise, and big capacity, our vacuum sealer works steadily and reliably.
3. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
4. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
5. The vacuum chamber is bright, clean, spacious and easy to clean.
6. The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so they can handle it with ease.

Technology Specification

Model DZ-260/O Vacuum Sealer
Machine Dimensions(mm) 480 × 330 × 400
Chamber Dimensions(mm) 385 × 280× 130(80)
Sealer Dimensions(mm) 260 × 8
Vacuum Pump(m³/h) 10
Power Consumption(kW) 0.37
Electrical Requirement(v/Hz) 220/50
Production Cycle(times/min) 1 to 2
Net Weight(kg) 35
Shipping Dimensions(mm) 560 × 410 × 435

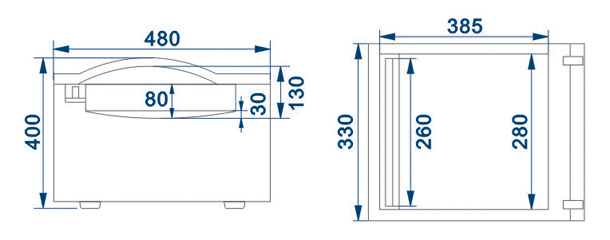

Sketch Map
