DZ-600L

Description

DZ-600/L vertical vacuum sealer (vacuum packing) uses microcomputer control system and is used for setting precise and stable parameters of vacuuming and sealing.
Scope of Application
DZ-600/L vertical vacuum sealer is applicable to vacuum packing every kinds of food, medicine, marine food, chemical product and electrical product, powder and granule product.

Technical Characters of Vacuum Packing

1. Microcomputer control system is used for setting precise and stable vacuuming, sealing time according to different packing materials and packing requirements, which is easy to operate.
2. The main structure of the vertical vacuum sealer is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
3. The lid is made of high-quality acrylic material which is solid and transparent for observing the packing situation within the vacuum chamber at any time.
4. The heavy-duty casters (with brake) on the vertical vacuum sealer features superior load bearing performance, so the user may move the machine with ease.
5. The material of vacuum chamber is made of 304 Stainless Steel, which is easy to clean.

Technology Specification

Model	DZ-600L Vertical Vacuum Sealer
Machine Dimensions(mm)	680 × 505 × 1095
Chamber Dimensions(mm)	620 × 95 × 300
Sealer Dimensions(mm)	600 × 8
Vacuum Pump(m³/h)	20
Power Consumption(kW)	0.9
Electrical Requirement(v/Hz)	220/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	81
Shipping Dimensions(mm)	740 × 580 × 1280

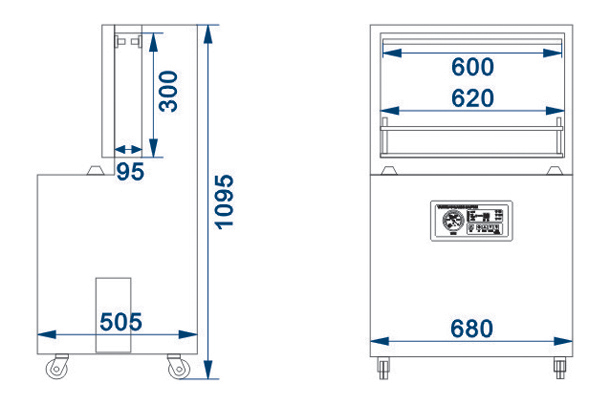

Sketch Map
