DZ-400-2SF

Description

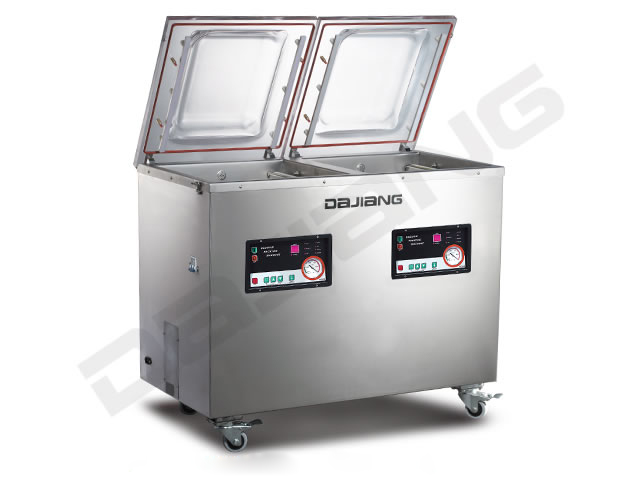

DZ-400-2SF double chamber machine is equipped with two absolutely control system structure. The two chambers could be worked at the same time or only one chamber is working. Equipped with microcomputer control system, the vacuum packing equipment is precise for every working program and stable for performance.
Overall, the machine has reasonable structure and is easy for operation and maintain. The working efficiency and application had been improved more compare with traditional double chamber vacuum packaging machine.

Scope of Application of Vacuum Packing Equipment

DZ-400-2SF double chamber machine is applicable to vacuum packing of food, medicine, marine food, chemical product and electrical product.

Technical Characters of Vacuum Packing Equipment

1. Microcomputer control system is used for setting precise and stable vacuuming, sealing time according to different packing materials and packing requirements, which is easy to operate.
2. The lid is made of high-quality acrylic material which is solid and transparent for observing the packing situation within the vacuum chamber at any time.
3. Equipped with high efficiency vacuum pump, lower noise, and big capacity, our DZ-400-2SF double chamber machine works steadily and reliably.
4. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
5. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
6. The main structure of the DZ-400-2SF double chamber machine is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
7. The heavy-duty casters (with brake) on the machine features superior load bearing performance so that the user can move the machine with ease.

Technology Specification

Model	DZ-400-2SF Double Chamber Machine

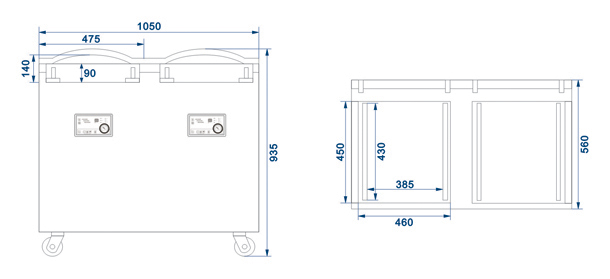

Machine Dimensions(mm)	1050 × 560 × 935
Chamber Dimensions(mm)	450 × 460 × 140(90)
Sealer Dimensions(mm)	430 × 8 × 2
Vacuum Pump(m³/h)	20 × 2
Power Consumption(kW)	0.9 × 2
Electrical Requirement(v/Hz)	220/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	153
Shipping Dimensions(mm)	1140 × 620 × 1090
