DM-410A

Description

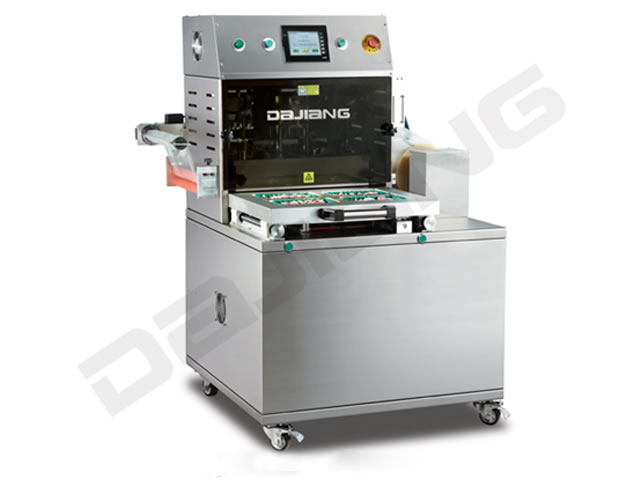

DM-410A floor type map tray sealing machine is a kind of sealer tray equipment, which has high degree of automation with high packing speed and good sealing effect.

Application of Sealer Tray Equipment

DM-410A floor type map tray sealing machine is applicable to fresh-keeping packaging of all types of boxed fresh, cooked food, such as cool fresh meat, cooked meat products, fast food, pastry, rice noodle, cheese, soy products, aquatic products, poultry and other boxed foods.

Technical Characters of Sealer Tray Equipment

1. Control System: OMRON PLC programmable control system. The data setting and motion control are accurate and the performance is reliable, so the operation is easier.

2. Main Structure Material: Regarding to the main structure material, floor type map tray sealing machine adopts 304 Stainless Steel, which is safe and easy to clean.
3. Pneumatic System: SMC pneumatic elements.
The quality of the sealer tray equipment is stable and reliable and the service life is long. Frequent equipment failures, suspension of work and other quality accident caused by component quality can be avoided.

4. Easily replaceable of sealing mould: Different size of the trays is available according to different requirements.

5. Work status indication: the floor type map tray sealing machine has an operating program status and failure real-time display function to monitor the equipment and ensure the normal operation.
6. Safety start button: The security measures of the sealer tray equipment only can be started by simultaneous operation of both hands, which effectively prevents security incidents caused by malfunction.

7. Emergency stop switch: The floor type map tray sealing machine is equipped with an emergency stop switch which can be pressed in case of abnormal condition to terminate all ongoing work programs and guarantee the safety of equipment and personnel.

8. Heavy duty casters: Universal caster wheels with brake function are mounted at the bottom of the equipment for users to move and fix the sealer

9. The floor type map tray sealing machine adopts replaceable sealing mould, so client could replace the different sizes and shape mould according to their requirement.
10. The microcomputer programmable controller and man-machine interface touch-screen control system are used in the machine.

Technology Specification

Model	DM-410A Floor Type Map Tray Sealing Machine
Packaging Tray Dimensions (mm)	540 × 310 × 80
Max Width of Film(mm)	430
Max Diameter Of Film(mm)	260
Packaging Speed(time/m)	5 to 6
Electrical Requirement	1P/220V/50HZ
Working Pressure(MPA)	0.6 to 0.8
Consume Power(kW)	3kW
Machine Weight(Kg)	380
Machine Size(mm)	1200 × 1150 × 1520

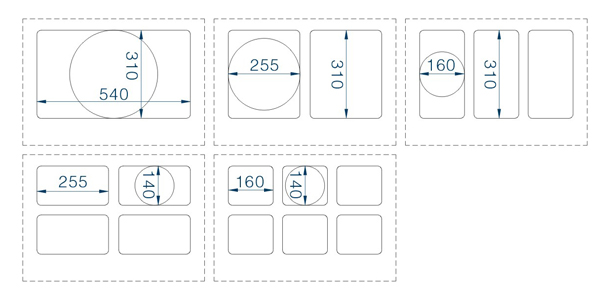

Proper Dimensions
