DZ-500T

Machine Description

DZ-500/T table top vacuum packing machine (vacuum packing equipment) offers a wide variation of possibilities and advantages. Depending on the product, the shelf life of vacuum packaged products can exceed normal bagged or wrapped packages. Beef can last up to six weeks refrigerated, and much longer when frozen.

Application

DZ-500/T vacuum packing equipment is widely applied in vacuum packaging of various food, medicine, electrical product and chemical product.

Technical Characters of Table Top Vacuum Packing Machine

1. Microcomputer control system is used for setting precise and stable vacuuming, sealing time according to different packing materials and packing requirements, which is easy to operate.
2. The lid is made of high-quality acrylic material, which is solid and transparent for observing the packing situation within the vacuum chamber at any time.
3. Equipped with high efficiency vacuum pump, lower noise, and big capacity, our table top vacuum packing machine works steadily and reliably.
4. The main structure of vacuum packing equipment is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
5. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
6. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
7. This vacuum packing equipment uses simple operation design. After setting parameters of all packing, then turning on the power switch, the desired vacuum packing and sealing can be carried out.
8. The vacuum chamber is bright, clean, spacious and easy to clean.
9. The unique suspension system of the vacuum pump motor guarantees low noise during the operation process.
10. The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so they can handle it with ease.

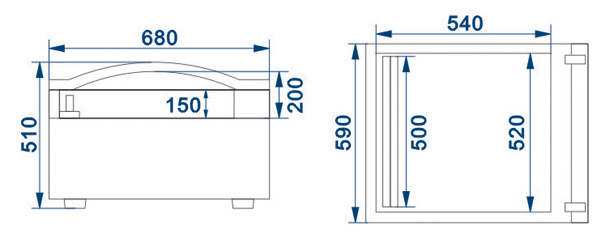

Technology Specification

Model	DZ-500/T Vacuum Packing Equipment,
Machine Dimensions(mm)	680 × 590 × 510
Chamber Dimensions(mm)	540 × 520 × 200(150)
Sealer Dimensions(mm)	500 × 8
Vacuum Pump(m³/h)	20
Power Consumption(kW)	0.9
Electrical Requirement(v/Hz)	220/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	87
Shipping Dimensions(mm)	750 × 660 × 560
