DZ-400-2E

Description

DZ-400/2E floor type vacuum packaging machine (vacuum sealer) is equipped with simple structure, stable performance, and convenience maintenance. As an automatic machine, it can complete the whole process of pumping air into vacuum state, sealing, lettering, cooling and exhaust in terms of the process, but just need to press the vacuum lid.

Application of Vacuum Sealing Machine

DZ-400/2E floor type vacuum sealer is applicable to food, meat, sauce, spices, dried fruit, bean products, chemical products, medicine granule, liquid etc.

Technical Characters of Vacuum Sealing Machine

1. Microcomputer control system is used for setting precise and stable vacuuming, sealing time according to different packing materials and packing requirements, which is easy to operate.
2. Equipped with high efficiency vacuum pump, lower noise, big capacity, our vacuum sealer works steadily and reliably.
3. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
4. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
5. The main structure of the vacuum sealer is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
6. The heavy-duty casters (with brake) on the machine features superior load bearing performance, so that the user can move the machine with ease.
7. Vacuum sealer can prevent the products from oxidization and mildew, as well as corrosion, keeping the quality and freshness and prolonging the storage time.

Technology Specification

Model DZ-400/2E Vacuum Sealer
Machine Dimensions(mm) 555 × 475 × 910
Chamber Dimensions(mm) 440 × 420 × 125(75)
Sealer Dimensions(mm) 420 × 8 × 2
Vacuum Pump(m³/h) 20
Power Consumption(kW) 0.9
Electrical Requirement(v/Hz) 220/50
Production Cycle(times/min) 1 to 2
Net Weight(kg) 79
Shipping Dimensions(mm) 610 × 530 × 1050

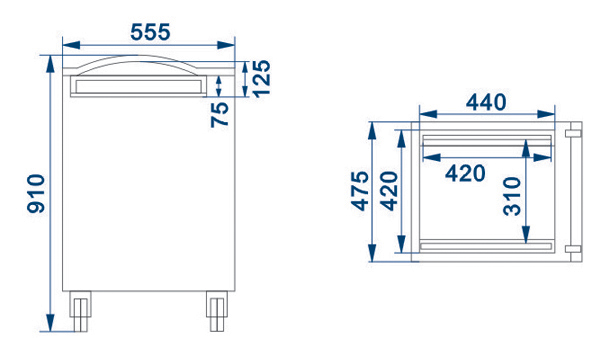

Sketch Map
