DZ-400CD

Description

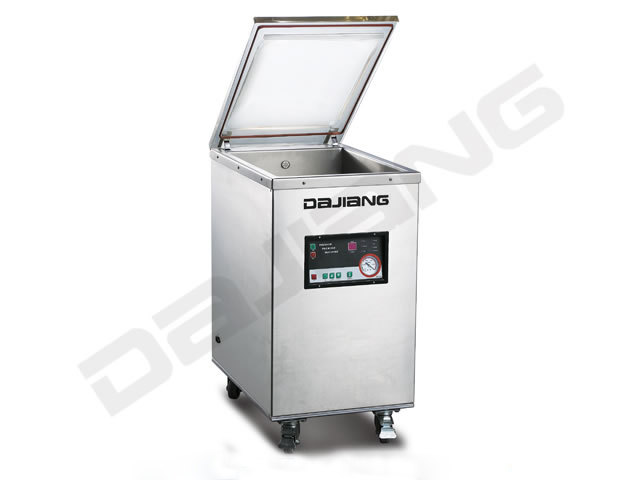

DZ-400/CD floor vacuum packing equipment is controlled by microcomputer system. According to the specific needs, the machine can make the vacuum packing, sealing more accurate through setting sealing program.
Scope of Application of Floor Vacuum Packing Machine Manufacturer
DZ-400/CD floor vacuum packing equipment is applicable to vacuum packing of various food, medicine, marine food, chemical product and electrical product.

Technical Characters of Floor Vacuum Packing Machine Manufacturer

1. The lid is made of high-quality acrylic material, which is solid and transparent for observing the packing situation within the vacuum chamber at any time.
2. The vacuum packing equipment is made primarily of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
3. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
4. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
5. The heavy-duty casters (with brake) on the machine features superior load bearing performance so that the user may move the machine with ease.
6. The vacuum packing equipment can prevent the products from oxidization and mildew, as well as corrosion and moisture, keeping the quality and freshness and prolonging the storage time.
7. Simple structure, stable performance, and convenience maintenance allows the machine complete work after press the vacuum lid, including the whole process of vacuum, inflating, sealing, printing, cooling, and venting.

Technology Specification

Model	DZ-400/CD Vacuum Packing Equipment

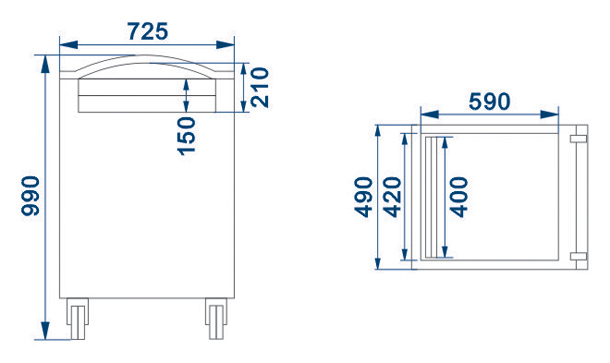

Machine Dimensions(mm)	725 × 490 × 990
Chamber Dimensions(mm)	590× 420 × 210(150)
Sealer Dimensions(mm)	400 × 8
Vacuum Pump(m³/h)	20/45
Power Consumption(kW)	0.9
Electrical Requirement(v/Hz)	220/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	93
Shipping Dimensions(mm)	780 × 570 × 1120
