Machine Description

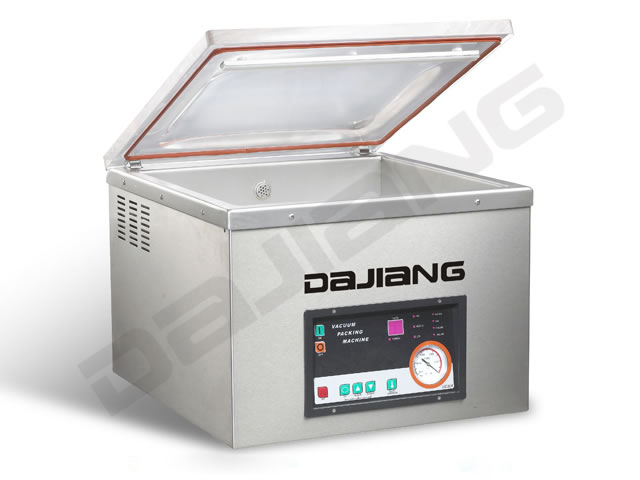

DZ-400/F table top vacuum packaging machine (vacuum packing machine) uses microcomputer control system which is used for setting precise and stable parameters of sealing. As commercial vacuum packing machine, it is suitable for smaller production, research departments and laboratories.


DZ-400/F table top vacuum packaging machine (vacuum packing machine) is widely applied in vacuum packaging of various food, medicine, electrical product and chemical product.

Technical Characters of Vacuum Packing Machine

1. Microcomputer control system is used for setting precise and stable time of vacuuming, according to different packing materials and packing requirements, which is easy to operate.
2. The unique suspension system of the vacuum pump motor guarantees low noise during operating of the machine.
3. The main structure of the vacuum packing machine is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
4. The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so they can handle it with ease.

Technology Specification

Model DZ-400/F Vacuum Packing Machine
Machine Dimensions(mm) 555 × 410 × 475
Chamber Dimensions(mm) 440 × 420 × 125 (75)
Sealer Dimensions(mm) 400 × 8
Vacuum Pump(m³/h) 20
Power Consumption(kW) 0.9
Electrical Requirement(v/Hz) 220/50
Production Cycle(times/min) 1 to 2
Net Weight(kg) 59
Shipping Dimensions(mm) 610 × 530 × 460

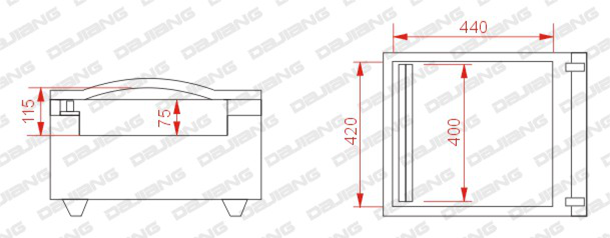

Sketch Map
