DZ-400/2F

Machine Description

DZ-400/2F table top vacuum packing equipment (table top vacuum sealers) uses complete stainless steel structure for maximum durability. This machine uses simple operation design. After setting of parameter of all packing, then turning on the power switch, the desired vacuum packing and sealing can be carried out.
In addition, hygienic design allow clean with ease. And equipped with multiple program setting options, it is easy to operate the microcomputer system.

Scope of Application of Table Top Vacuum Sealers

DZ-400/2F table top vacuum packing equipment is widely applied in vacuum packaging of various food, medicine, electrical product and chemical product.

Technical Characters

1. Equipped with high efficiency vacuum pump, lower noise, and big capacity, our table top vacuum sealers works steadily and reliably.
2. The main structure of the machine is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
3. The lid is made of high-quality acrylic material, which is solid and transparent for observing the packing situation within the vacuum chamber at any time.
4. This vacuum packing equipment uses simple operation design. After setting of parameter of all packing, then turning on the power switch, the desired vacuum packing and sealing can be carried out.
5. The unique suspension system of the vacuum pump motor guarantees low noise during the operation process.

Technology Specification

Model DZ-400/2F Table Top Vacuum Sealers
Machine Dimensions(mm) 555 × 475 × 410
Chamber Dimensions(mm) 440 × 420 × 125(75)
Sealer Dimensions(mm) 420 × 8 × 2
Vacuum Pump(m³/h) 20
Power Consumption(kW) 0.9
Electrical Requirement(v/Hz) 220/50
Production Cycle(times/min) 1 to 2
Net Weight(kg) 59
Shipping Dimensions(mm) 610 × 530 × 460

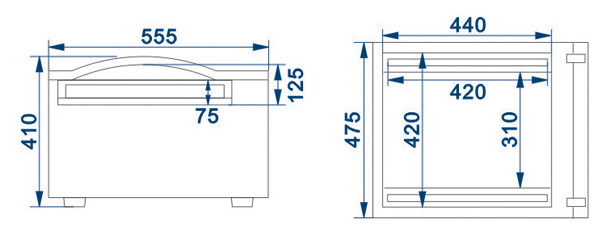

Sketch Map
