DZ-500B

Description

DZ-500/B floor chamber vacuum packaging machine uses microcomputer control system, which is used for setting precise and stable time of vacuuming and sealing according to different packing material and packing requirement.

Application of Vacuum Packing Equipment

DZ-500/B floor chamber vacuum packaging machine is applicable to vacuum packing of various food, medicine, marine food, chemical product and electrical product.

Technical Characters of Vacuum Packing Equipment

1. Accuracy: set the seal time accuracy
2. Consistency: Save setup to ensure reliable packaging effect
3. Reasonable operation: one-time set and save set up. Visual window allows the operation process clearly visible,
4. The main structure of the floor chamber vacuum packaging machine is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
5 Controllability: Automatic continuous ventilation (liquid packaging software or fragile goods are allowed), scram vacuum pump, double sealing.
6 Clean and Convenient: sealing strip and filling board are detachable, without edges and pollutant.
7 Flexibility: wide range of packaging products, vacuum package (packaging material) of varying size.

Technology Specification

Model DZ-500/B Floor Chamber Vacuum Packaging Machine
Machine Dimensions(mm) 745 × 570 × 960
Chamber Dimensions(mm) 500 × 600 × 150 (90)
Sealer Dimensions(mm) 480 × 8
Vacuum Pump(m³/h) 20/45
Power Consumption(kW) 0.9
Electrical Requirement(v/Hz) 220/50
Production Cycle(times/min) 1 to 2
Net Weight(kg) 98
Shipping Dimensions(mm) 800 × 640 × 1120

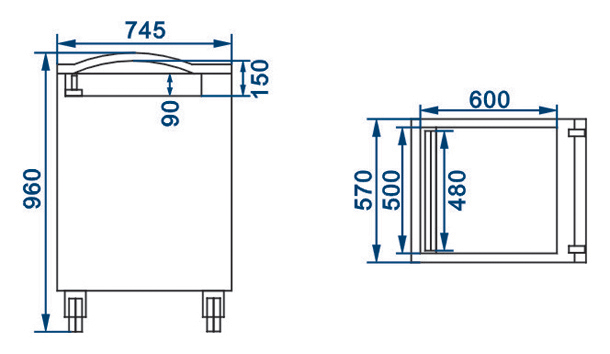

Sketch Map
