DZ-500-2G

Machine Description

DZ-500/2G floor type chamber vacuum sealers has the properties of simple operation and convenient moving.

Scope of application

DZ-500/2G floor type chamber vacuum sealers is applicable to vacuum packing of various food, medicine, marine food, chemical product and electrical product.

Technical Characters of Vacuum Packing

1. The lid is made of high-quality acrylic material, which is solid and transparent for observing the packing situation within the vacuum chamber at any time.
2. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
3. Equipped with high efficiency vacuum pump, lower noise, and big capacity, our chamber vacuum sealers works steadily and reliably.
4. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
5. The heavy-duty casters (with brake) on the vacuum packing features superior load bearing performance, so that the user can move the machine with ease.
6. Stainless steel construction equipped with a visual window allows the operation process clearly visible, even the completely inexperience operator can also handle it well.
7. High-degree automatic allows the vacuuming, sealing and cooling to automatically start after close the lid.

Technology Specification

Model	DZ-500/2G Chamber Vacuum Sealers

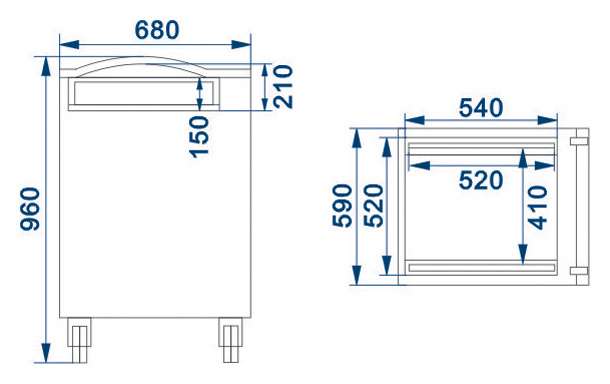

Machine Dimensions(mm)	590×680×960
Chamber Dimensions(mm)	540 × 520 × 210 (150)
Sealer Dimensions(mm)	520 × 8 × 2
Vacuum Pump(m³/h)	20/45/63
Power Consumption(kW)	0.9
Electrical Requirement(v/Hz)	220/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	108
Shipping Dimensions(mm)	740 × 660 × 1130
