DZ-400GL

Machine Description

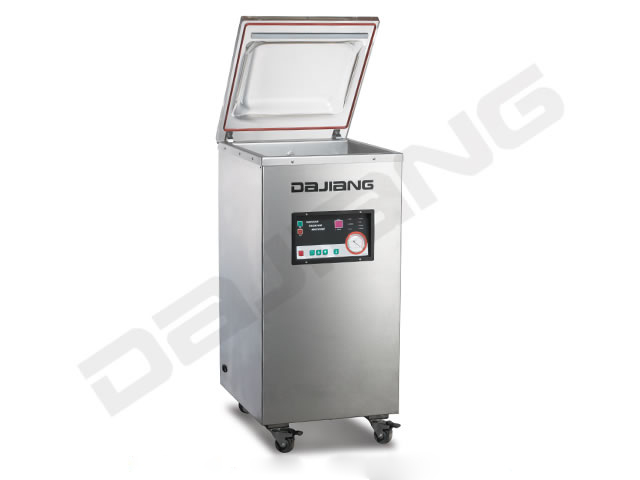

DZ-400/GL floor type vacuum machine (vacuum sealer) uses microcomputer control system, which has the merits of reasonable structure, stable performance, wide application, and convenience maintenance.

Scope of application

DZ-400/GL vacuum sealer is applicable to vacuum packing of various food, medicine, marine food, chemical product and electrical product.

Technical Characters of Floor Type Vacuum Machine

1. Microcomputer control system is used for precise and stable setting vacuuming and sealing time according to different packing materials and packing requirements, which can operate with ease.
2. The main structure of the vacuum sealer is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
3. Perfect quality inspection and quality control system assure safe and stable operation of the vacuum pump. In addition, different brands and displacement of the vacuum pump can be chosen by customer.
4. The special labor-saving hinges on the vacuum lid markedly reduce the labor intensity of operator in daily work, so they can handle it with ease.
5. The "V” shaped chamber lid gasket of vacuum sealer is made of high-density material, which ensures sealing performance.
6. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
7. Vacuum lid is made of high-quality acrylic material, which is solid and transparent for observing the packing situation within the vacuum chamber at any time.
8. High-degree automatic allows the vacuuming, sealing and cooling to automatically start after close the lid.

Technology Specification

Model	DZ-400/GL Vacuum Sealer
Machine Dimensions(mm)	555 × 475 × 1070
Chamber Dimensions(mm)	440 × 420 × 200 (150)
Sealer Dimensions(mm)	400 × 8
Vacuum Pump(m³/h)	20
Power Consumption(kW)	0.9
Electrical Requirement(v/Hz)	220/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	75
Shipping Dimensions(mm)	610 × 530 × 1200
