DZ-400G

Machine Description

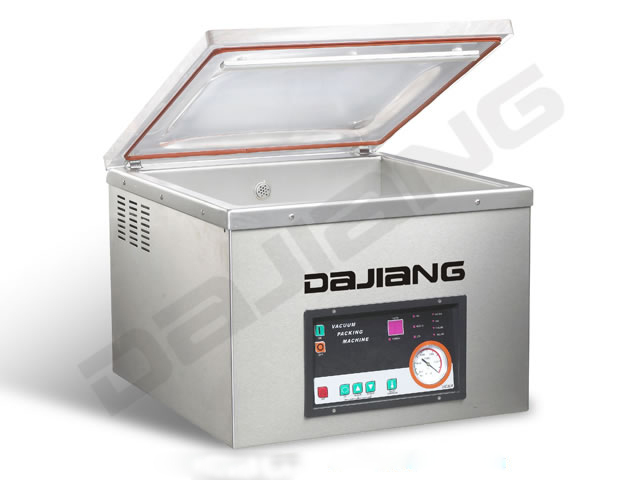

DZ-400/G chamber vacuum sealer is characterized by easy-to-handle, stainless steel machine and competitive price. It is a small vacuum packaging machine, so it allows plug and play and fits into a small space.

Application

DZ-400/G chamber vacuum packing is widely applied in commercial vacuum packaging of various food, medicine, electrical product and chemical product.

Function of Chamber Vacuum Sealer

1. Transparent lid lead to high visibility of the product
2. Round corner is easy to clean.
3. Seal beams and silicone are easy to remove

Technical Characters of Chamber Vacuum Sealer

1. Microcomputer control system is used for setting precise and stable vacuuming, sealing time according to different packing materials and packing requirements, which is easy to operate.
2. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
3. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
4. This chamber vacuum sealer uses simple operation design. After setting parameters of all packing, then turning on the power switch, the desired vacuum packing and sealing can be carried out.
5. The unique suspension system of the vacuum pump motor guarantees low noise during the operation process.
6. The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so they handle it with ease.

Technology Specification

Model	DZ-400/G Chamber Vacuum Sealer

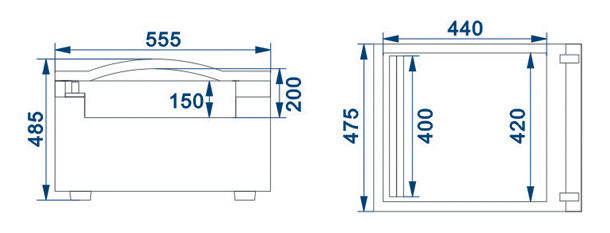

Machine Dimensions(mm)	555 × 475 × 485
Chamber Dimensions(mm)	440 × 420 × 200(150)
Sealer Dimensions(mm)	400 × 8
Vacuum Pump(m³/h)	20
Power Consumption(kW)	0.9
Electrical Requirement(v/Hz)	220/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	60
Shipping Dimensions(mm)	610 × 530 × 540
