DZ-630L

Description

DZ-630L vertical type vacuum sealer is primarily made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
The sealing adopts vertical capsulated form so the products and packaging can directly put into the vacuum chamber and complete the vacuum sealing by one-time. In addition, open type operation is easy for workers to relocate heavy items.

Scope of Application of Vacuum Sealing Machinery

Vertical type vacuum sealer is applicable to vacuum packing food, medicine, marine food, chemical product and electrical product, powder and granule product.

Technical Characters of Vacuum Sealing Machinery

1. Microcomputer control system is used for setting precise and stable time of vacuuming and sealing according to different packing materials and packing requirements, which is easy to operate.
2. Vertical type vacuum sealer is equipped with adjustable up and down clapboard, which is convenience for vacuum packing different shape items.
3. The material of vacuum chamber is 304 Stainless Steel, which is easy to clean.
4. The main structure of the vacuum sealing machinery is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
5 The adjustable heavy-duty food on the bottom of machine ensures machine running smoothly.

Technology Specification

Model DZ-630L Vertical Type Vacuum Sealer
Machine Dimensions(mm) 1090 × 700 × 1280
Chamber Dimensions(mm) 670 × 300 × 790
Sealer Dimensions(mm) 630 × 8
Vacuum Pump(m³/h) 45
Power Consumption(kW) 1.1
Electrical Requirement(v/Hz) 380/50
Production Cycle(times/min) 1 to 2
Net Weight(kg) 221
Shipping Dimensions(mm) 1180 × 760 × 1410

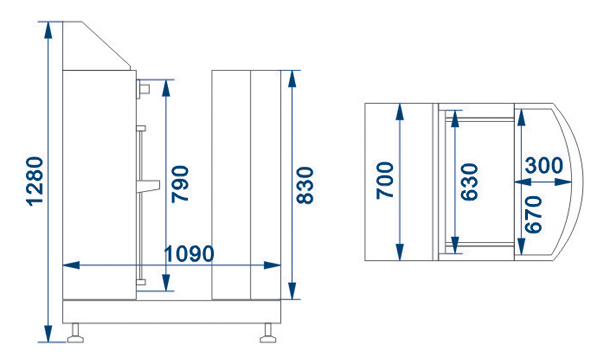

Sketch Map
