DZ-400N

Machine Description

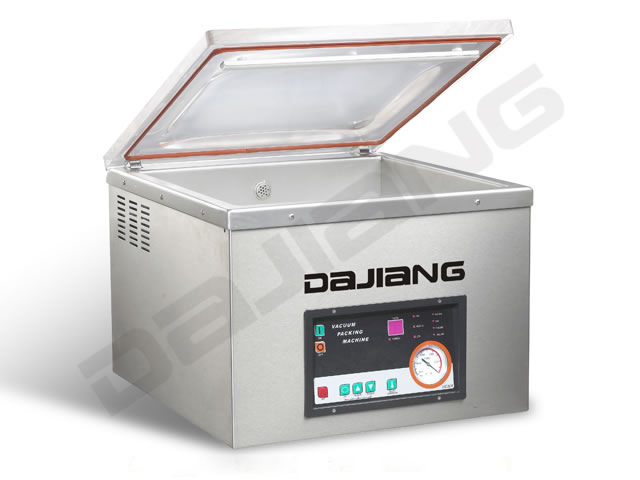

DZ-400/N table top chamber vacuum packaging machine is being digitally controlled. The small footprint systems of the machine means a kitchen or a deli is allowed to pack vacuum products with a minimal amount of installation but a maximum amount of programming.

Application of Vacuum Packing Equipment

DZ-400/N table top chamber vacuum packaging machine is widely applied in vacuum packaging of various food, medicine, electrical product and chemical product.

Technical Characters of Vacuum Packing Equipment

1. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
2. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
3. Equipped with high efficiency vacuum pump, lower noise, and big capacity, our table top chamber vacuum packaging machine works steadily and reliably.
4. The vacuum chamber is bright, clean, spacious and easy to clean.
5. The unique suspension system of the vacuum pump motor guarantees low noise during the operation process.
6. The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so they can handle it with ease.
7. The main structure of the table top chamber vacuum packaging machine is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.

Technology Specification

Model	DZ-400/N Vacuum Packing Equipment

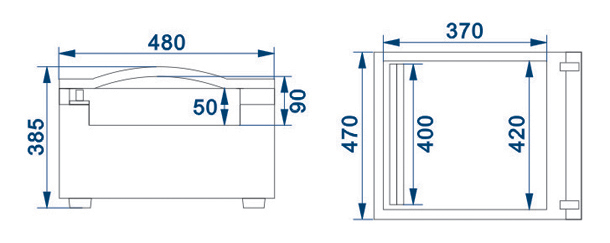

Machine Dimensions(mm)	480 × 470 × 385
Chamber Dimensions(mm)	420 × 370 × 90(50)
Sealer Dimensions(mm)	400 × 8
Vacuum Pump(m³/h)	10
Power Consumption(kW)	0.37
Electrical Requirement(v/Hz)	220/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	43
Shipping Dimensions(mm)	540 × 530 × 435
