DZ-500-2S

Description

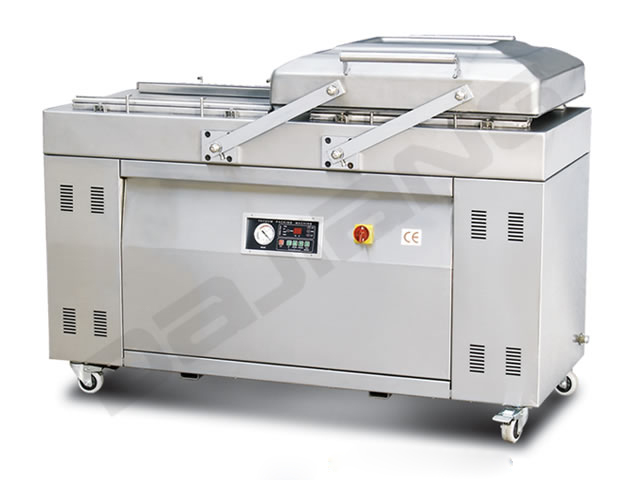

DZ-500-2SB double chamber vacuum packing machine use a lid to cover the two vacuum chambers alternatively in order to improve the working efficiency, when one of them is processing, the other could be used to accommodate contents.

Scope of Application

DZ-500-2SB double chamber vacuum sealer is applicable to vacuum packing of various food, medicine, marine food, chemical product and electrical product.

Technical Characters of Vacuum Packing

1. Microcomputer control system is used for setting precise and stable time of vacuuming, sealing according to different packing materials and packing requirements, which is easy to operate.
2. With big capacity vacuum pump which could achieve maximum vacuum degree in short time and improve working efficiency.
3. The double chamber vacuum sealer is equipped with an emergency stop switch which can be pressed in case of abnormal condition to terminate all ongoing work programs and guarantee the safety of equipment and personnel.
4. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
5. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
6. The heavy-duty casters (with brake) on the double chamber vacuum sealer features superior load bearing performance, so that the user can move the machine with ease.
7. The floated vacuum pump is easy to operate and improved the working efficiency.
8. The exclusive labor-saving hinges on the lid markedly reduce the labor intensity of operator.

Technology Specification

Model	DZ-500-2S Double Chamber Vacuum Sealer
Machine Dimensions(mm)	1290×685×960
Chamber Dimensions(mm)	620 × 560 × 160
Sealer Dimensions(mm)	500 × 8 × 2
Vacuum Pump(m³/h)	20 × 2/45/63
Power Consumption(kW)	1.1
Electrical Requirement(v/Hz)	220/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	226
Shipping Dimensions(mm)	1390 × 760 × 1170
