DZ-900

Machine Description

Regarding to the main structure, DZ-900 vacuum sealing machinery (chamber vacuum sealer) is primarily made of 304 Stainless Steel. The vacuum sealer is equipped with large vacuum chamber and wide application. The sealing bar is up to 900mm, which is suitable for packing large meat and medicine.

Scope of Application of Vacuum Sealing Machinery

DZ-900 chamber vacuum sealer is applicable to vacuum packing of food, medicine, marine food, chemical product and electrical product.

Technical Characters of Vacuum Sealing Machinery

1. Microcomputer control system is used for precise and stable setting vacuuming and sealing time according to different packing materials and packing requirements, which is easy to operate.
2. With big capacity vacuum pump which could achieve maximum vacuum degree in short time and improve working efficiency.
3. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
4. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
5. The lid uses the stainless steel cover, which features exquisite appearance, good sealing, and high mechanism intensity.
6. The chamber vacuum sealer is equipped with emergency stop switch. In case of accident, the operator may press the emergency stop switch at any time to terminate the ongoing work program and make the equipment restore the initial state.
7. The free-floating type hinge of the vacuum cover guarantees the stability the lid and prolongs the service life of the lid.

Technology Specification

Model DZ-900 Chamber Vacuum Sealer
Machine Dimensions(mm) 1050 × 750 × 1000
Chamber Dimensions(mm) 920 × 620 × 200
Sealer Dimensions(mm) 540 × 8 / 900 × 8
Vacuum Pump(m³/h) 45/63/100
Power Consumption(kW) 2.2
Electrical Requirement(v/Hz) 380/50
Production Cycle(times/min) 1 to 2
Net Weight(kg) 270
Shipping Dimensions(mm) 1150 × 820 × 1120

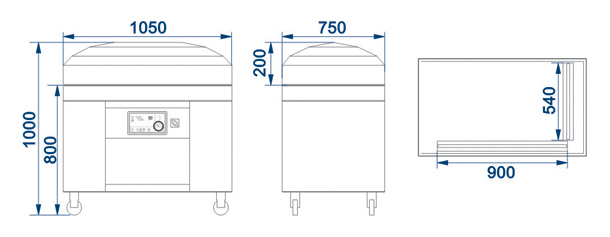

Sketch Map
