DZ-350-2G

Machine Description

DZ-350/2G floor type vacuum packing equipment is characterized by automatic process of vacuuming, sealing, printing, cooling.
Floor vacuum packing machine can prevent the products from oxidization and mildew, as well as corrosion and moisture, keeping the quality and freshness and prolonging the storage time.

Scope of Application

DZ-350/2G floor vacuum packing machine is applicable to vacuum packing of various food, medicine, marine food, chemical product and electrical product.

Technical Characters of Vacuum Packing Equipment

1. Microcomputer control system is used for setting precise and stable vacuuming, sealing time according to different packing materials and packing requirements, which is easy to operate.
2. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
3. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
4. The heavy-duty casters (with brake) on the vacuum packing equipment features superior load bearing performance, so that the user can move the machine with ease.
5. The vacuum lid is made of high-quality acrylic material, which is solid and transparent for observing the packing situation within the vacuum chamber at any time.

Technology Specification

Model	DZ-350/2G Vacuum Packing Equipment

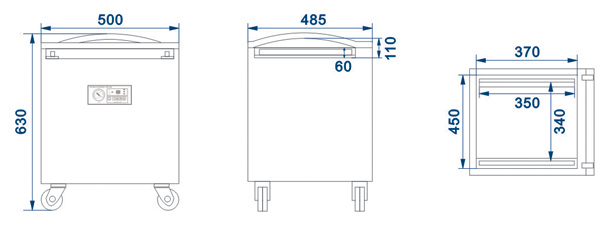

Machine Dimensions(mm)	500 × 485 × 630
Chamber Dimensions(mm)	450 × 370 ×110(60)
Sealer Dimensions(mm)	350 × 8× 2
Vacuum Pump(m³/h)	20
Power Consumption(kW)	0.9
Electrical Requirement(v/Hz)	220/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	64
Shipping Dimensions(mm)	560 × 550 × 790
