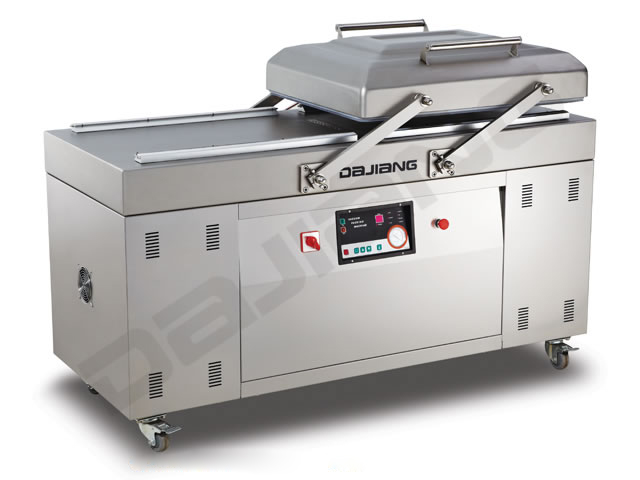

DZ-700-2S

Description

Equipped with big capacity vacuum pump, the vacuum packing equipment could achieve maximum vacuum degree in short time and improve working efficiency.
Double chamber vacuum packing machine is characterized by automatic process of vacuuming, sealing, printing, cooling, which is used in vacuum packaging food, pharmaceutical, chemical and electric industries.
The vacuum packing equipment can prevent the products from oxidization and mildew, as well as corrosion and moisture, keeping the quality and freshness and prolonging the storage time.

Application of Double Chamber Vacuum Packing Machine

DZ-700-2SB vacuum packing equipment is applicable to vacuum packing of various food, medicine, marine food, chemical product and electrical product.

Technical Characters of Double Chamber Vacuum Packing Machine

1. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
2. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
3. The floated vacuum pump is easy to operate and improved the working efficiency.
4. The vacuum packing equipment is primarily made of 304 Stainless Steel.
5. DZ-700-2SB double chamber pneumatic vacuum packaging machine composes flat vacuum chamber. It is easy to clean during the operation.
6. The heavy-duty casters (with brake) on the machine features superior load bearing performance, so that the user can move the machine with ease.

Technology Specification

Model	DZ-700-2S Vacuum Packing Equipment
Machine Dimensions(mm)	1700 × 755 × 970
Chamber Dimensions(mm)	810 × 610 × 170
Sealer Dimensions(mm)	700 × 8 × 2
Vacuum Pump(m³/h)	63/100
Power Consumption(kW)	1.5
Electrical Requirement(v/Hz)	380/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	465
Shipping Dimensions(mm)	1800 × 830 × 1180
