DM-350A

Description

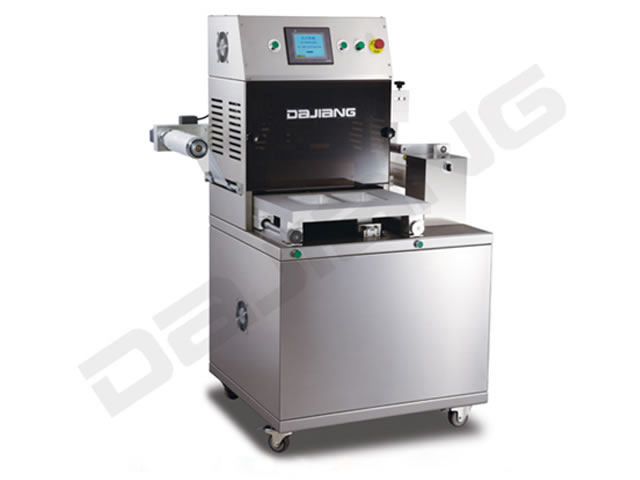

DM-350A floor type map tray food sealer is a type of sealer machine packaging‎. The basic principle of the machine is packing the food in the plastic pallet with plastic pallet and sealing film. The sealing product is not only pleasing to the eye but preventing the pollution of food.

Application of Sealer Machine Packaging‎

DM-350A floor type map tray food sealer is applicable to fresh-keeping packaging of all types of boxed fresh, cooked food, such as cool fresh meat, cooked meat products, fast food, pastry, rice noodle, cheese, soy products, aquatic products, poultry and other boxed foods.

Technical Characters of Sealer Machine Packaging‎

1. Control System: OMRON PLC programmable control system. The data setting and motion control are accurate and the performance is reliable, so the operation is easier.

2. Main Structure Material: Regarding to the main structure material, floor type map tray food sealer adopts 304 Stainless Steel, which is safe and easy to clean.
3. Pneumatic System: SMC pneumatic elements.
With long service life and high applicability, it leads to reliable quality. Equipment failures can be effectively avoided to allow the continuous use without being interrupted by quality matters.

4. Easily replaceable of sealing mould: Different size of the trays is available according to different requirements.


5. Work status indication:The floor type map tray food sealer has an operating program status and failure real-time display function to monitor the equipment and ensure the normal operation.
6. Safety start button: The security measures of the sealer machine packaging only can be started by simultaneous operation of both hands, which effectively prevents security incidents caused by malfunction of the operator.

7. Emergency stop switch: The floor type map tray food sealer is equipped with an emergency stop switch which can be pressed in case of abnormal condition to terminate all ongoing work programs and guarantee the safety of equipment and personnel.

8. Heavy duty casters: Universal caster wheels with brake function are mounted at the bottom of the sealer machine packaging‎ for users to move and fix the machine.

9. The floor type map tray food sealer features high degree of automation. All of the major components are internationally renowned brand, which features reliable quality, long service life and easy to maintain.
10. The operation is simple and convenient. Double startup safety switch is adopted to guarantee operator safety. The whole automatic packing process can be completed by just pressing the start switch.

Technology Specification

Model	DM-350A Floor Type Map Tray Food Sealer
Packaging Tray Dimensions (mm)	430 × 260 × 80
Max Width of Film(mm)	325
Max Diameter Of Film(mm)	260
Packaging Speed(time/m)	5 to 6
Electrical Requirement	1P/220V/50HZ
Working Pressure(MPA)	0.6 to 0.8
Consume Power(kW)	2.5kW
Machine Weight(Kg)	280
Machine Size(mm)	1050 × 960 × 1520

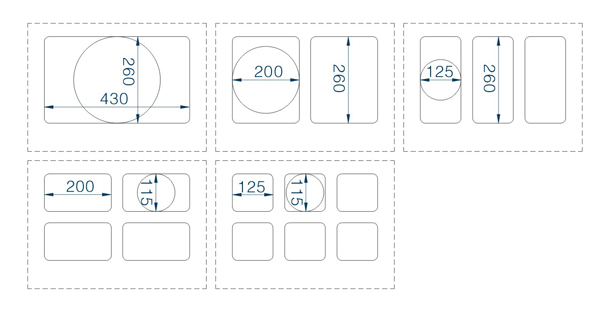

Proper Dimensions
