Machine Description

DZ-390/T table top vacuum packaging machine (vacuum sealer) is suitable for kitchens, retail counters, manufacturing operations and laboratories. It is engineered for precise, hygienic and user-friendly vacuum packaging. Equipped with high efficiency vacuum pump, lower noise, big capacity, our machine works steadily and reliably.

Application of Vacuum Sealing Machinery

DZ-390/T table top vacuum packaging machine (vacuum sealer) is widely applied in vacuum packaging of various food, medicine, electrical product and chemical product.

Technical Characters of Vacuum Sealing Machinery

1. Microcomputer control system is used for setting precise and stable vacuuming, sealing time according to different packing materials and packing requirements, which is easy to operate.
2. The lid is made of high-quality acrylic material, which is solid and transparent for observing the packing situation within the vacuum chamber at any time.
3. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
4. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
5. This table top vacuum packaging machine uses simple operation design. After setting parameters of all packing, then turning on the power switch, the desired vacuum packing and sealing can be carried out.
6. The unique suspension system of the vacuum pump motor guarantees low noise during the operation process.

Technology Specification

Model DZ-390/T Table Top Vacuum Packaging Machine
Machine Dimensions(mm) 610 × 470 ×495
Chamber Dimensions(mm) 510 × 410 × 160(110)
Sealer Dimensions(mm) 390 × 8
Vacuum Pump(m³/h) 20
Power Consumption(kW) 0.9
Electrical Requirement(v/Hz) 220/50
Production Cycle(times/min) 1 to 2
Net Weight(kg) 65
Shipping Dimensions(mm) 670 × 530 × 550

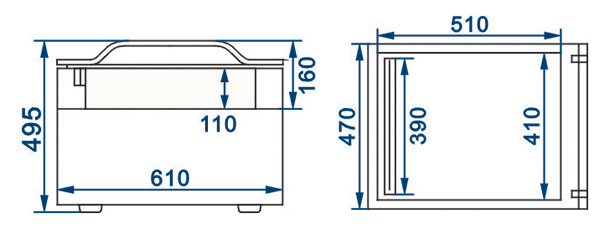

Sketch Map
