DZ-400-2G

Description

DZ-400/2G vacuum sealer uses microcomputer control system, which has the merits of reasonable structure, stable performance, wide application, and convenience maintenance.

Scope of Application of Floor Vacuum Packaging Machine

DZ-400/2G vacuum sealer is applicable to vacuum packing of various food, medicine, marine food, chemical product and electrical product.

Technical Characters of Floor Vacuum Packaging Machine

1. Microcomputer control system is used for precise and stable setting vacuuming and sealing time according to different packing materials and packing requirements, which is easy to operate.
2. Equipped with high efficiency vacuum pump, lower noise, and big capacity, our DZ-400/2G vacuum sealer works steadily and reliably.
3. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
4. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
5. The shell of the machine is made of stainless steel. And the control panel is equipped with touch button, which can prior to pre-program the whole technical parameters. The DZ-400/2G vacuum sealer can complete the whole process of vacuum packaging by pressing the lid.
6. The vacuum lid is made of high-quality acrylic material, which is solid and transparent for observing the packing situation within the vacuum chamber at any time.
7. High-degree automatic allows the vacuuming, sealing and cooling to automatically start after close the lid.

Technology Specification

Model DZ-400/2G Vacuum Sealer
Machine Dimensions(mm) 535 × 500 × 630
Chamber Dimensions(mm) 450 × 420 ×140 (90)
Sealer Dimensions(mm) 400 × 8×2
Vacuum Pump(m³/h) 20
Power Consumption(kW) 0.9
Electrical Requirement(v/Hz) 220/50
Production Cycle(times/min) 1 to 2
Net Weight(kg) 68
Shipping Dimensions(mm) 590 × 570 × 800

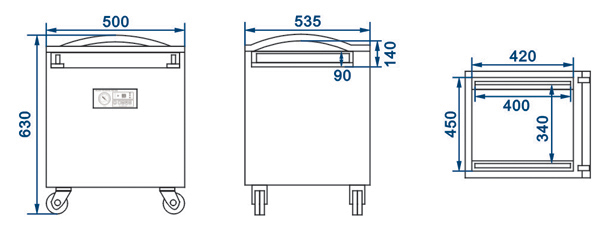

Sketch Map
