DZ-460-2G

Description

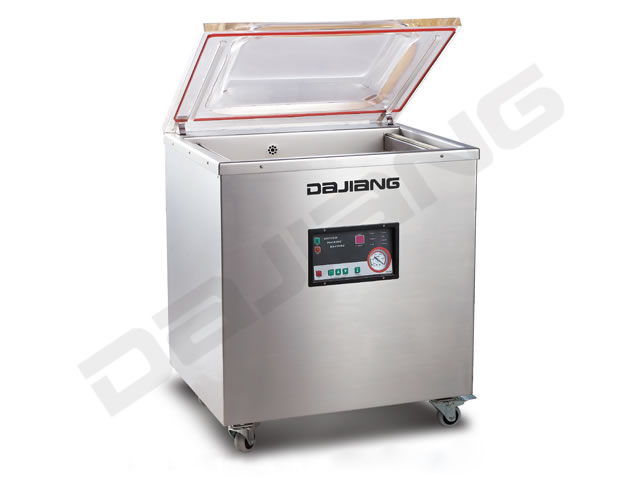

DZ-460/2G floor vacuum packaging machine (vacuum sealing machinery) uses microcomputer control system, which is used for setting precise and stable time of vacuuming and sealing according to different packing material and packing requirement.

Scope of application of Floor Vacuum Packaging Machine

DZ-460/2G floor type vacuum sealing machinery is applicable to vacuum packing of various food, medicine, marine food, chemical product and electrical product.

Technical Characters of Floor Vacuum Packaging Machine

1. Microcomputer control system is used for precise and stable setting vacuuming and sealing time according to different packing materials and packing requirements, easily for operation.
2. The lid is made of high-quality acrylic material, which is solid and transparent for observing the packing situation within the vacuum chamber at any time.
3. The heavy-duty casters (with brake) on the floor vacuum packaging machine features superior load bearing performance, so that the user can move the machine with ease.
4. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
5. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
6. High-degree automatic allows the vacuuming, sealing and cooling to automatically start after close the lid.

Technology Specification

Model	DZ-460/2G Floor Vacuum Packaging Machine

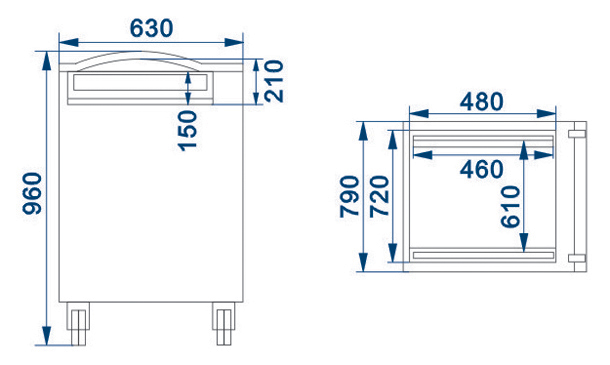

Machine Dimensions(mm)	790 × 630 × 960
Chamber Dimensions(mm)	720 × 480 × 210 (150)
Sealer Dimensions(mm)	460 × 8 × 2
Vacuum Pump(m³/h)	20/45/63
Power Consumption(kW)	0.9
Electrical Requirement(v/Hz)	220/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	121
Shipping Dimensions(mm)	870 × 690 × 1140
