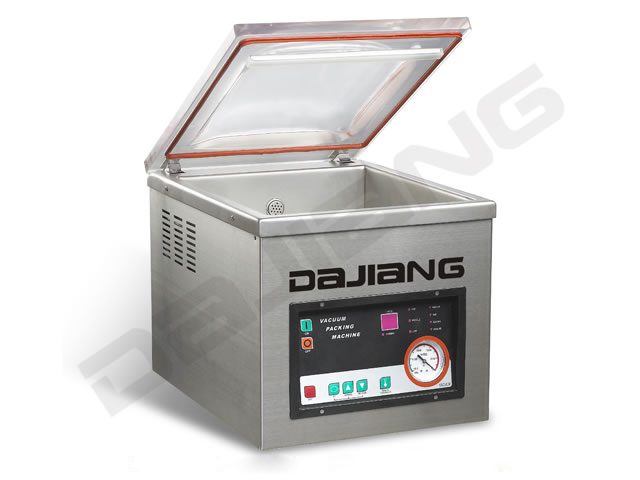

DZ-300PJ

Machine Description

DZ-300/PJ table top vacuum packing machine appeals to numerous small and medium producers. Nowadays, the vacuum packing equipment plays an important role in the kitchen environment and diet environment.
Our vacuum packing equipment has been developed in the commercial vacuum packaging industry like small restaurant, hotel kitchen, butcher shop, deli or fish processor etc. These robust vacuum packing equipments have earned an excellent reputation in both home and abroad.

Application

DZ-300/PJ table top vacuum packing machine is widely applied in vacuum packaging of various food, medicine, electrical product and chemical product.

Technical Characters of Vacuum Packing Machine

1. Microcomputer control system is used for setting precise and stable vacuuming, sealing time according to different packing materials and packing requirements, which is easy to operate.
2. The lid is made of high-quality acrylic material, which is solid and transparent for observing the packing situation within the vacuum chamber at any time.
3. Equipped with high efficiency vacuum pump, lower noise and big capacity, our vacuum packing machine works steadily and reliably.
4. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
5. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
7. This vacuum packing machine uses simple operation design. After setting of parameter of all packing, then turning on the power switch, the desired vacuum packing and sealing can be carried out.
8. The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so they can handle it with ease.

Technology Specification

Model	DZ-300/PJ f Vacuum Packing Machine

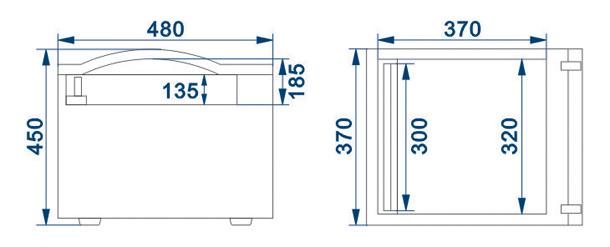

Machine Dimensions(mm)	480 × 370 × 450
Chamber Dimensions(mm)	370 × 320 × 185(135)
Sealer Dimensions(mm)	300 × 8
Vacuum Pump(m³/h)	10
Power Consumption(kW)	0.37
Electrical Requirement(v/Hz)	220/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	39
Shipping Dimensions(mm)	560 × 420 × 490
