DZ-1000

Machine Description

Regarding to the main structure,vacuum packing machine (DZ-1000 vacuum sealer) is primarily made of 304 Stainless Steel.
The vacuum sealer is equipped with large vacuum chamber and wide application. The sealing bar is up to 1000 mm, which is suitable for packing large meat and medicine.

Scope of application of DZ-1000 Vacuum Sealer

Vacuum packing machine is applicable to vacuum packing of various food, medicine, marine food, chemical product and electrical product.

Technical Characters of Vacuum Packing Machine

1. With big capacity vacuum pump which could achieve maximum vacuum degree in short time and improve working efficiency.
2. The vacuum chamber is made from stainless steel, and it is easy to clean during the operation.
3. The vacuum lid uses the stainless steel cover, which features exquisite appearance, good sealing, and high mechanism intensity.
4. This DZ-1000 vacuum sealer uses simple operation design. After setting parameter of all packing, then turning on the power switch, the desired vacuum packing and sealing can be carried out.
5. The heavy duty casters (with brake) on the machine features superior load bearing performance, so that the user may move the machine with ease.
6. The vacuum lid is designed with exquisite appearance, good sealing effect and high mechanical strength. It completely avoids deformation and leaking and other problems.

Technology Specification

Model	DZ-1000 Vacuum Sealer

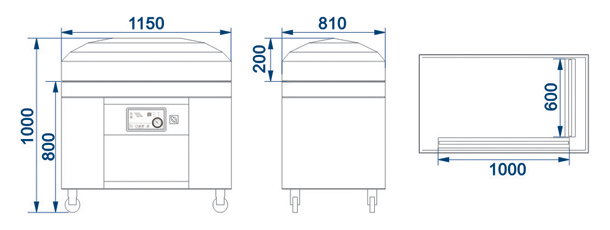

Machine Dimensions(mm)	1150×810×1000
Chamber Dimensions(mm)	720 × 1050 × 200
Sealer Dimensions(mm)	1000 × 8/600×8
Vacuum Pump(m³/h)	100/200
Power Consumption(kW)	2.2
Electrical Requirement(v/Hz)	380/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	380
Shipping Dimensions(mm)	1195 × 880 × 1120
