DZ-500L

Description

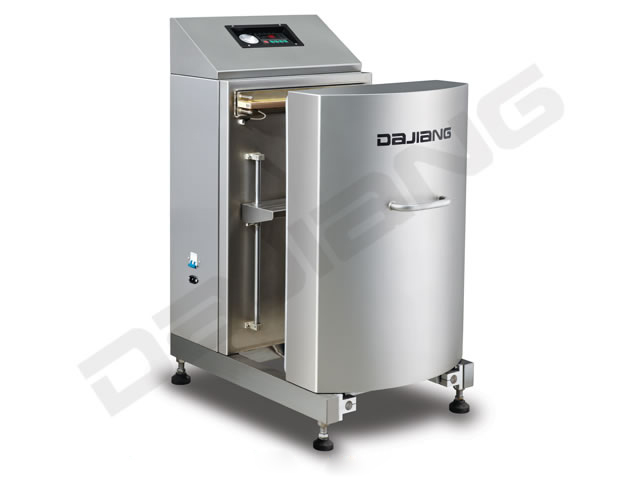

DZ-500/L chamber vacuum sealer adopts vertical capsulated form, so the products and packaging can directly put into the vacuum chamber and complete the vacuum sealing by one-time. In addition, open type operation is easy for workers to relocate heavy items.

Application of Vertical Type Vacuum Packaging Machine

DZ-500/L chamber vacuum sealer is widely applicable to big packaged food material, big jujube, walnut kernel, electronic products, etc.

Technical Characters of Vertical Type Vacuum Packaging Machine

1. Microcomputer control system is used for setting precise and stable vacuuming, sealing time according to different packing materials and packing requirements, which is easy to operate.
2. DZ-500/L chamber vacuum sealer is equipped with adjustable up and down clapboard, which is convenience for vacuum packing of different shape items.
3. The lid is made of stainless steel, which has the merits of good appearance, excellent sealing, high mechanical strength and easy to clean.
4. The material of vacuum chamber is made of 304 Stainless Steel, which is easy to clean.
5. Equipped with high efficiency vacuum pump, lower noise, and big capacity, our DZ-500/L chamber vacuum sealer works steadily and reliably.
6. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
7. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
8. Equipped with high efficiency vacuum pump, lower noise, and big capacity, our DZ-500/L chamber vacuum sealer works steadily and reliably.
9. The main structure of the chamber vacuum sealer is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
10. The adjustable heavy-duty food on the bottom of machine ensures machine running smoothly.

Technology Specification

Model	DZ-500/L Chamber Vacuum Sealer
Machine Dimensions(mm)	760 × 550 × 1120
Chamber Dimensions(mm)	510 × 200 × 760
Sealer Dimensions(mm)	500 × 8
Vacuum Pump(m³/h)	20 × 2
Power Consumption(kW)	0.90 × 2
Electrical Requirement(v/Hz)	220/50
Production Cycle(times/min)	1 to 2
Net Weight(kg)	220
Shipping Dimensions(mm)	920 × 630 × 1320

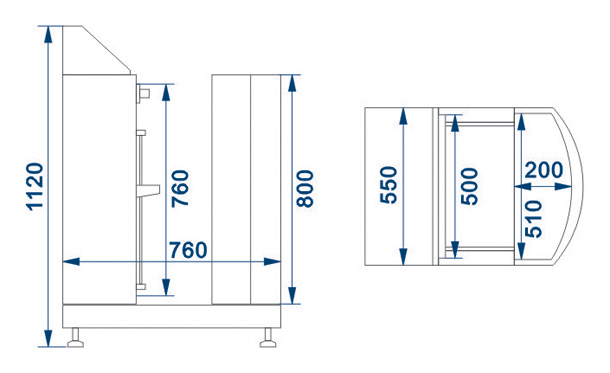

Sketch Map
